NV6123 Fast Charging Chip GaNFast Power IC 650V Load Drivers IC QFN30 Switches

GaNFast Power IC NV6123 650V Load Drivers IC 300mOhm QFN30 Power Distribution Switches

Product Description

NV6123 is a thermally-enhanced version of the popular NV6113 650 V GaNFast™ power IC, Monolithic integration of FET, drive and logic creates an easy-to-use ‘digital in, power out’ high performance powertrain building block, enabling designers to create the fastest, smallest, most efficient integrated powertrain in the world.

Specification Of NV6125

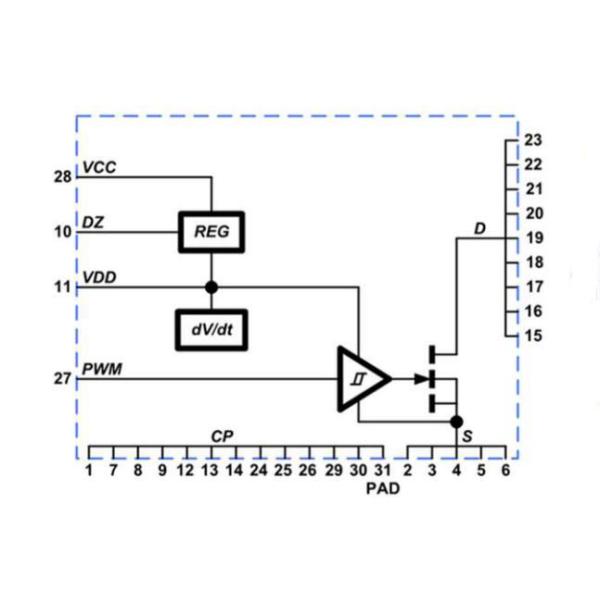

Internal Schematic

Features

• Thermally-enhanced version of NV6115
• Large cooling pad
• 2 MHz operation
• Enhanced thermals when using CS resistor
• Programmable turn-on dV/dt
• Small, low-profile SMT QFN
• 6 x 8 mm footprint, 0.85 mm profile
• Minimized package inductance
• Low 175 mΩ resistance
• Wide VCC range (10 to 30 V)
• Zero reverse recovery charge
• ESD protection – 2 kV (HBM), 1 kV (CDM)
• Monolithically-integrated gate drive

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
