16MHz Integrated Circuit Chip MSP430F2132IRHBR 16Bit Microcontroller IC VQFN32
Product Description Of MSP430F2132IRHBR
MSP430F2132IRHBR is ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications.
MSP430F2132IRHBR features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
Specification Of MSP430F2132IRHBR
| Part Number | MSP430F2132IRHBR |
| Core Processor | |
| Core Size | 16-Bit |
| Speed | |
| Connectivity | I²C, IrDA, LINbus, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | |
| Program Memory Size | 8KB (8K x 8 + 256B) |
| Program Memory Type | |
| RAM Size | |
| Voltage - Supply (Vcc/Vdd) | |
| Data Converters | |
| Oscillator Type | |
| Operating Temperature | |
Features Of MSP430F2132IRHBR
- Low Supply Voltage Range: 1.8 V to 3.6 V
- Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs
- 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
- Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to ±1%
- Internal Very-Low-Power Low-Frequency Oscillator
- High-Frequency (HF) Crystal up to 16 MHz
- 10-Bit 200-ksps A/D Converter With Internal Reference, Sample-and-Hold, Autoscan, and Data Transfer Controller

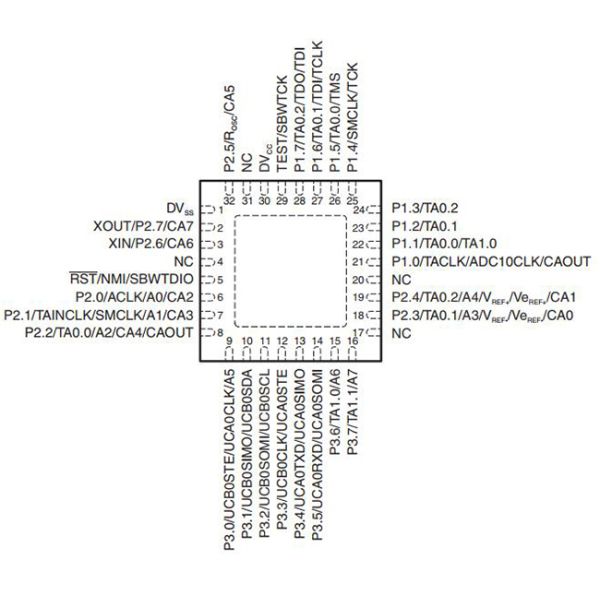

Package Of MSP430F2132IRHBR
Other Supply Product Types
| Part Number | Package |
| MSP430F2132IRHBR | VQFN32 |
| TCAN1462DRBRQ1 | SON8 |
| LMR23630APQDRRTQ1 | WSON12 |
| TPS62231TDRYRQ1 | SON6 |
| INA2181A1QDGSRQ1 | MSOP10 |
| TPS7B6833QPWPRQ1 | HTSSOP28 |
| XC7K70T-1FBG676I | BGA-676 |
| XC7K70T-2FBG676C | BGA-676 |
| MPC8548VJAUJD | FCBGA-783 |
| MKV10Z64VLF7 | LQFP-48 |
| MKE06Z128VLH4 | LQFP-64 |
| MC9S08PA32AVLC | LQFP32 |
| XC3S200-4FTG256C | BGA-256 |
| QCA6391 | BGA |
| QCA-6391-0-NSP265-TR-02-0 | BGA |
| IPQ8074 | BGA |
| IPQ-8074-0-772FCBGA-TR-01-0 | BGA |
| BCM6755A1KFEBG | BGA |
| MT7921LE | SMD |
| MT7921AU | SMD |
| ESP32-C6 | QFN |
| RK3568 | BGA |
| A4989SLDTR-T | 38-TFSOP |
| MPX5700A | 6-SIP Module |
| MPX5700AS | 6-SIP Module |
| MPX5700ASX | 6-SIP Module |
| MPX5700D | 6-SIP Module |
| MPX5700DP | 6-SIP Module |
| MPX5700GP | 6-SIP Module |
| MPX5700GP1 | 6-SIP Module |
FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
|
|
16MHz Integrated Circuit Chip MSP430F2132IRHBR 16Bit Microcontroller IC VQFN32 Images
|
